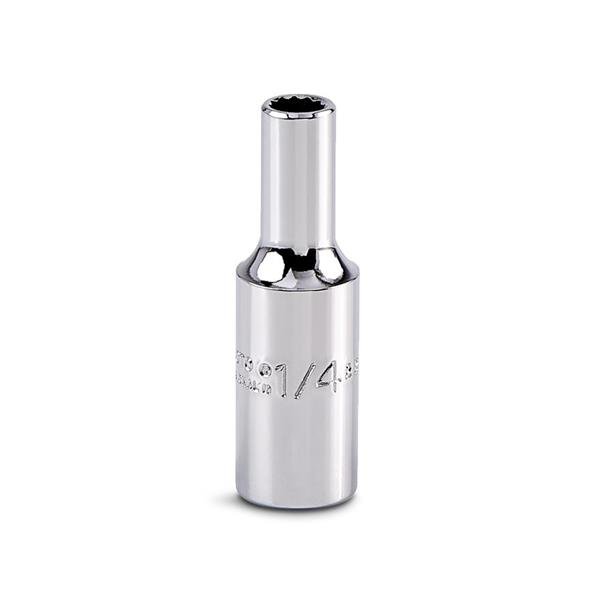

3/8 Inch Drive Deep Socket 1/4 Inch - 12 Point - Proto®

  • Item Code: J5008
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded or rusted fasteners.

Tech Specs

Back To Top
Nut End Outside Diameter [in] 13/32
UPC Code 662679160623
Box Height [in] 1.250
Nut Depth [in] 5/16
Bolt Clearance Depth [in] 1-11/16
Brand Proto
Drive End Outside Diameter [in] 21/32
Harmonization Code 8204200000
Overall Length [in] 2-1/8
Finish Full Polish
Item Weight [lbs] 0.100
Item Width [in] 0.600
Length Type Deep
Point Size 12
Specification_ASME ASME B107.110-2012
Country of Origin United States
Drive Size [in] 3/8
Item Length [in] 2.100
Item Quantity 1
Box Length [in] 4.500
Box Width [in] 2.250
Size [in] 1/4
Box Quantity 6
Box Weight [lbs] 0.540
Item Height [in] 0.600
Specification_AS AS954E S3.8.1
