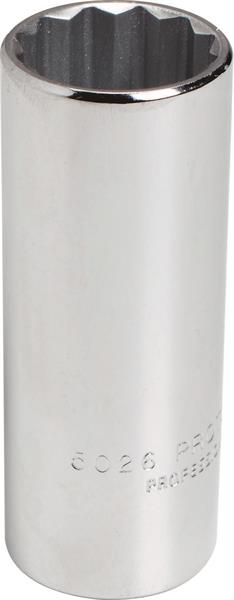

3/8 Inch Drive Deep Socket 11/32 - 12 Point - Proto®

  • Item Code: J5011
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679975746
Item Quantity 1
Length Type Deep
Nut End Outside Diameter [in] 1/2
Finish Full Polish
Item Weight [lbs] 0.090
Item Width [in] 0.700
Point Size 12
Specification_ASME ASME B107.110-2012
Box Height [in] 1.300
Box Length [in] 4.700
Harmonization Code 8204200000
Nut Depth [in] 25/64
Overall Length [in] 2-1/8
Size [in] 11/32
Box Weight [lbs] 0.550
Drive Size [in] 3/8
Item Length [in] 2.100
Length [in] 2-1/8
Bolt Clearance Depth [in] 1-11/16
Box Width [in] 2.400
Brand Proto
Drive End Outside Diameter [in] 21/32
Mouth Width 2 [in] 25/64
Specification_AS AS954E S3.8.1
Box Quantity 6
Country of Origin United States
Item Height [in] 0.700
