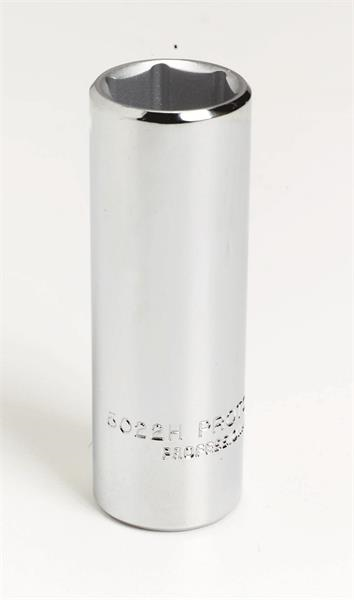

3/8 Inch Drive Deep Socket 1 Inch - 6 Point - Proto®

  • Item Code: J5032H
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 6 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
Carton Weight [lbs] 41.170
Length Type Deep
UPC Code 662679161149
Country of Origin United States
Drive End Outside Diameter [in] 1-21/64
Drive Size [in] 3/8
Nut End Outside Diameter [in] 1-21/64
Overall Length [in] 2-3/4
Point Size 6
Box Length [in] 9.120
Box Weight [lbs] 3.560
Finish Full Polish
Harmonization Code 8204200000
Item Length [in] 2.800
Item Quantity 1
Item Weight [lbs] 0.580
Nose Width [in] 1-21/64
Box Width [in] 3.560
Brand Proto
Carton Length [in] 15.300
Item Height [in] 1.300
Size [in] 1
Box Height [in] 1.500
Nut Depth [in] 1-3/16
Box Quantity 6
Bolt Clearance Depth [in] 2-5/64
Carton Quantity 70
Carton Width [in] 5.400
Length [in] 2-3/4
Carton Height [in] 6.000
Item Width [in] 1.300
Specification_ASME ASME B107.110-2012
