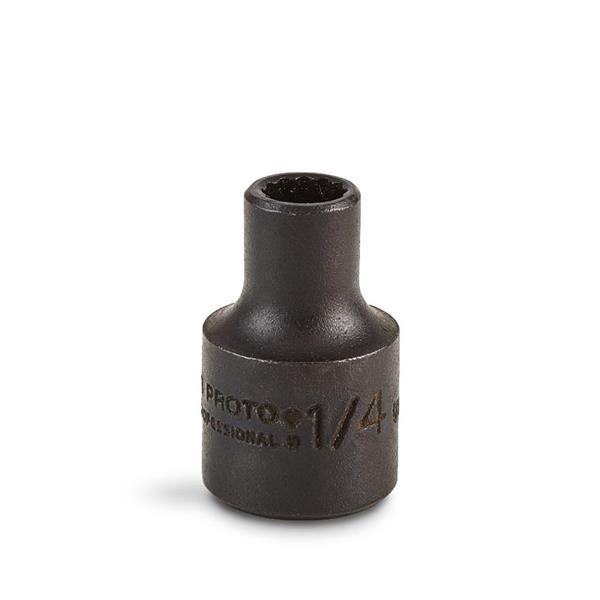

3/8 Inch Drive Socket 1/4 Inch - 12 Point - Proto®

  • Item Code: J5208
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679161200
Brand Proto
Nut End Outside Diameter [in] 25/64
Size [in] 1/4
Specification_AS AS954E S3.8.1
Box Weight [lbs] 0.370
Finish Full Polish
Item Height [in] 0.600
Item Width [in] 0.600
Nut Depth [in] 23/64
Point Size 12
Specification_ASME ASME B107.110-2012
Box Quantity 6
Item Weight [lbs] 0.050
Nose Width [in] 25/64
Box Height [in] 1.250
Mouth Width 2 [in] 23/64
Box Length [in] 4.500
Box Width [in] 2.250
Item Length [in] 1.200
Bolt Clearance Depth [in] 21/32
Country of Origin United States
Drive Size [in] 3/8
Harmonization Code 8204200000
Item Quantity 1
Length Type Standard
Overall Length [in] 1-3/32
Drive End Outside Diameter [in] 43/64
