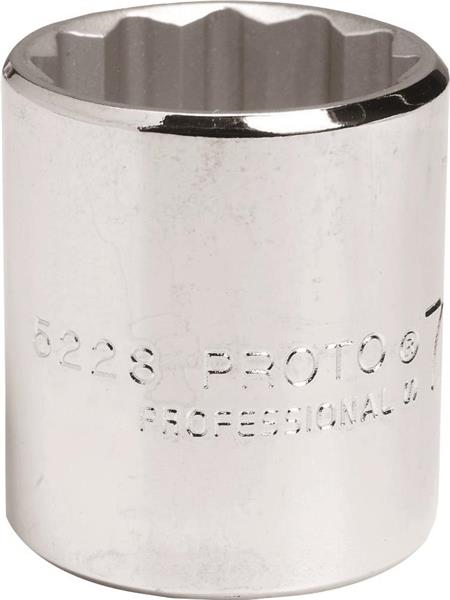

3/8 Inch Drive Socket 17/32 Inch - 12 Point - Proto®

  • Item Code: J5217
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
Drive End Outside Diameter [in] 49/64
Nut End Outside Diameter [in] 49/64
Size [in] 17/32
UPC Code 662679975715
Box Weight [lbs] 0.550
Box Height [in] 1.300
Brand Proto
Harmonization Code 8204200000
Item Quantity 1
Length Type Standard
Mouth Width 2 [in] 23/64
Nose Width [in] 49/64
Country of Origin United States
Drive Size [in] 3/8
Bolt Clearance Depth [in] 11/16
Box Quantity 6
Item Height [in] 0.800
Specification_AS AS954E S3.8.1
Finish Full Polish
Item Length [in] 1.100
Item Width [in] 0.800
Overall Length [in] 1-1/8
Specification_ASME ASME B107.110-2012
Box Length [in] 4.700
Box Width [in] 2.400
Item Weight [lbs] 0.090
Length [in] 1-1/8
Nut Depth [in] 23/64
Point Size 12
