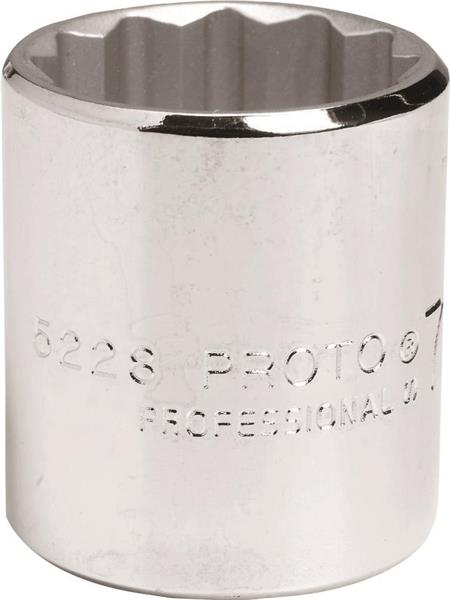

3/8 Inch Drive Socket - 19/32 Inch - 12 Point - Proto®

  • Item Code: J5219
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679975722
Bolt Clearance Depth [in] 11/16
Item Height [in] 0.800
Size [in] 19/32
Finish Full Polish
Item Length [in] 1.100
Item Weight [lbs] 0.100
Item Width [in] 0.800
Point Size 12
Specification_ASME ASME B107.110-2012
Overall Length [in] 1-1/8
Box Quantity 6
Specification_AS AS954E S3.8.1
Box Weight [lbs] 0.590
Country of Origin United States
Drive Size [in] 3/8
Item Quantity 1
Nut Depth [in] 1/2
Brand Proto
Length Type Standard
Box Length [in] 4.700
Box Width [in] 2.400
Drive End Outside Diameter [in] 27/32
Nose Width [in] 33/64
Box Height [in] 1.300
Harmonization Code 8204200000
Nut End Outside Diameter [in] 33/64
