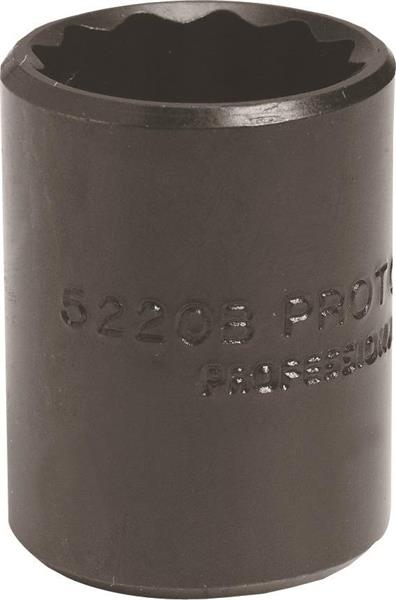

3/8 Inch Drive Black Oxide Socket 5/8 Inch - 12 Point - Proto®

  • Item Code: J5220B
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679290191
Bolt Clearance Depth [in] 11/16
Box Quantity 6
Specification_AS AS954E S3.8.1
Country of Origin United States
Drive Size [in] 3/8
Box Height [in] 1.300
Harmonization Code 8204200000
Item Quantity 1
Length Type Standard
Nut Depth [in] 1/2
Drive End Outside Diameter [in] 7/8
Item Length [in] 1.200
Nut End Outside Diameter [in] 7/8
Size [in] 5/8
Finish Black Oxide
Item Height [in] 0.900
Overall Length [in] 1-1/8
Brand Proto
Item Width [in] 0.900
Length [in] 1-1/8
Box Length [in] 4.700
Box Weight [lbs] 0.600
Box Width [in] 2.400
Item Weight [lbs] 0.100
Point Size 12
Specification_ASME ASME B107.110-2012
