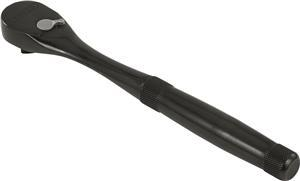

3/8 Inch Drive Premium Pear Head Ratchet 8-1/2 Inch - Black Oxide - Proto®
- Item Code: J5249XLBL
- Brand: Proto
- Unit Size: 1
Description
Features
Back To Top- Small pear head design for access in tight, hard-to-reach work areas.
- 45-tooth gear provides balance between 8° articulation angle and high torque carrying capacity.
- Sealed design helps prevent debris from entering ratchet mechanism reducing wear. Also, helps to keep lubrication contained within the components. Patent pending design.
- Low profile reversing lever design for quick, one-hand operation.
- Contoured, ergonomically designed handle for comfort. Knurled bands allow for increased grip and slip resistance.
- Double nickel chrome plated for enhanced corrosion protection or black oxide finish.
- Field repairable.
Tech Specs
Back To Top| UPC Code | 662679573737 |
|---|---|
| Brand | Proto |
| Item Length [in] | 8.400 |
| Specification_ASME | ASME B107.10M |
| Box Height [in] | 1.800 |
| Box Quantity | 6 |
| Carton Length [in] | 15.200 |
| Carton Weight [lbs] | 35.770 |
| Harmonization Code | 8466100175 |
| Item Height [in] | 1.000 |
| Item Width [in] | 1.200 |
| Overall Length [in] | 8-1/2 |
| Country of Origin | United States |
| Drive Size [in] | 3/8 |
| Box Length [in] | 10.700 |
| Box Width [in] | 3.600 |
| Carton Width [in] | 5.500 |
| Item Weight [lbs] | 0.880 |
| Style | Pear Head |
| Carton Height [in] | 6.000 |
| Carton Quantity | 40 |
| Finish | Black Oxide |
| Box Weight [lbs] | 5.260 |
| Item Quantity | 1 |
