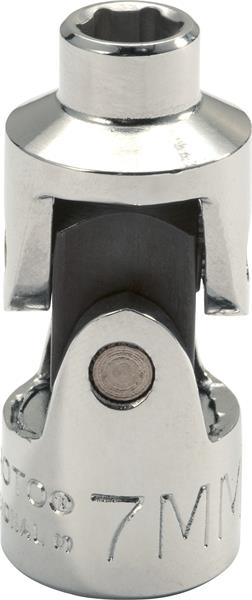

3/8 Inch Drive Universal Joint Socket 7 mm - 6 Point - Proto®

  • Item Code: J5270HAM
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 6 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
Overall Length [in] 1-49/64
UPC Code 662679996307
Box Weight [lbs] 0.730
Box Height [in] 1.100
Box Length [in] 4.700
Box Width [in] 2.400
Nut Depth [in] 5/16
Nut End Outside Diameter [in] 27/64
Box Quantity 6
Nose Width [in] 27/64
Drive Size [in] 3/8
Finish Full Polish
Item Width [in] 0.700
Outside Head Width 2 [in] 1-49/64
Specification_ASME ASME B107.110-2012
Harmonization Code 8204200000
Item Weight [lbs] 0.120
Brand Proto
Country of Origin United States
Item Height [in] 0.700
Item Quantity 1
Point Size 6
Bolt Clearance Depth [in] 7/16
Drive End Outside Diameter [in] 23/32
Item Length [in] 1.800
Length Type Standard
Size [mm] 7
