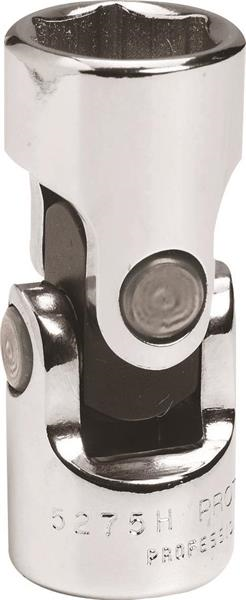

3/8 Inch Drive Universal Socket 7/16 Inch - 6 Point - Proto®

  • Item Code: J5274HA
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 6 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
Bolt Clearance Depth [in] 5/16
UPC Code 662679994457
Item Weight [lbs] 0.130
Length Type Standard
Point Size 6
Brand Proto
Harmonization Code 8204200000
Item Quantity 1
Size [in] 7/16
Item Height [in] 0.800
Item Length [in] 1.800
Box Quantity 6
Box Weight [lbs] 0.770
Nose Width [in] 41/64
Nut End Outside Diameter [in] 41/64
Box Height [in] 1.100
Drive End Outside Diameter [in] 3/4
Nut Depth [in] 5/16
Box Length [in] 5.700
Box Width [in] 2.600
Country of Origin United States
Drive Size [in] 3/8
Finish Full Polish
Item Width [in] 0.800
Overall Length [in] 1-25/32
Specification_ASME ASME B107.110-2012
