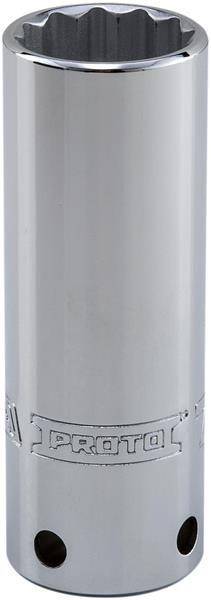

Tether-Ready 1/2 Inch Drive Deep Socket 11 mm - 12 Point - Proto®

  • Item Code: J5311M-TT
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
Carton Quantity 91
Carton Weight [lbs] 26.670
UPC Code 662679143237
Box Quantity 6
Country of Origin United States
Size [mm] 11
Specification_AS AS954E S3.8.1
Bolt Clearance Depth [in] 2-3/32
Carton Length [in] 15.300
Drive End Outside Diameter [in] 55/64
Item Weight [lbs] 0.300
Nut Depth [in] 5/8
Box Length [in] 7.700
Brand Proto
Carton Height [in] 6.000
Finish Full Polish
Item Height [in] 0.800
Item Length [in] 3.200
Item Width [in] 0.800
Point Size 12
Specification_ASME ASME B107.110-2012
Overall Length [in] 3-1/4
Box Width [in] 3.500
Drive Size [in] 1/2
Box Height [in] 1.300
Box Weight [lbs] 1.800
Carton Width [in] 5.400
Harmonization Code 8204200000
Item Quantity 1
Nut End Outside Diameter [in] 45/64
