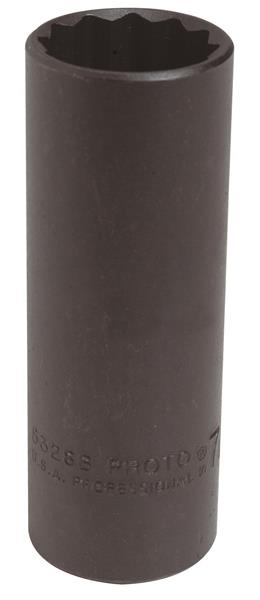

1/2 Inch Drive Black Oxide Deep Socket 1/2 Inch - 12 Point - Proto®

  • Item Code: J5316B
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679300043
Specification_ASME ASME B107.110-2012
Box Width [in] 3.500
Drive Size [in] 1/2
Item Width [in] 0.700
Mouth Width 2 [in] 51/64
Nut Depth [in] 51/64
Point Size 12
Size [in] 1/2
Item Height [in] 0.700
Length Type Deep
Overall Length [in] 3-1/4
Box Weight [lbs] 1.690
Country of Origin United States
Nut End Outside Diameter [in] 47/64
Box Length [in] 7.500
Box Quantity 6
Finish Black Oxide
Item Weight [lbs] 0.270
Specification_AS AS954E S3.8.1
Bolt Clearance Depth [in] 2-1/8
Box Height [in] 1.370
Nose Width [in] 47/64
Brand Proto
Item Length [in] 3.200
Length [in] 3-1/4
Drive End Outside Diameter [in] 55/64
Harmonization Code 8204200000
Item Quantity 1
