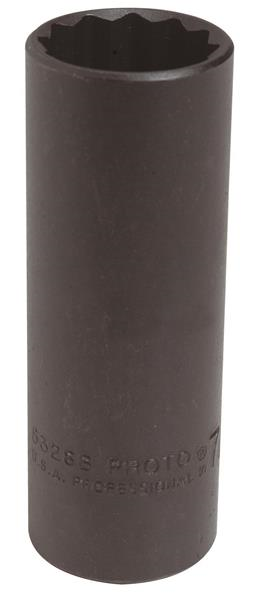

1/2 Inch Drive Black Oxide Deep Socket 3/4 Inch - 12 Point - Proto®

  • Item Code: J5324B
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679300081
Bolt Clearance Depth [in] 2-1/8
Box Width [in] 3.500
Brand Proto
Drive End Outside Diameter [in] 1-3/64
Harmonization Code 8204200000
Item Width [in] 1.000
Nose Width [in] 1-3/64
Box Height [in] 1.370
Box Length [in] 7.500
Specification_AS AS954E S3.8.1
Box Weight [lbs] 2.340
Finish Black Oxide
Item Quantity 1
Item Weight [lbs] 0.390
Length [in] 3-1/4
Overall Length [in] 3-1/4
Drive Size [in] 1/2
Item Length [in] 3.200
Length Type Deep
Nut End Outside Diameter [in] 1-3/64
Point Size 12
Specification_ASME ASME B107.110-2012
Box Quantity 6
Country of Origin United States
Nut Depth [in] 1-3/16
Size [in] 3/4
Item Height [in] 1.000
