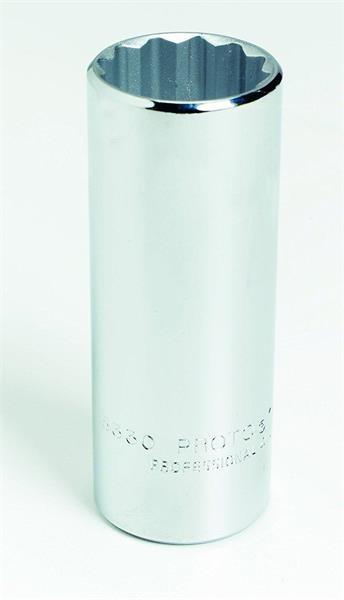

1/2 Inch Drive Deep Socket 13/16 Inch - 12 Point - Proto®

  • Item Code: J5326
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679180263
Bolt Clearance Depth [in] 2-39/64
Drive End Outside Diameter [in] 1-3/32
Item Height [in] 1.000
Nut End Outside Diameter [in] 1-3/32
Specification_AS AS954E S3.8.1
Box Width [in] 3.500
Harmonization Code 8204200000
Nut Depth [in] 1-7/32
Length [in] 3-1/4
Size [in] 13/16
Box Height [in] 1.370
Box Quantity 6
Box Weight [lbs] 2.600
Brand Proto
Item Length [in] 3.300
Item Width [in] 1.000
Country of Origin United States
Item Quantity 1
Box Length [in] 7.500
Drive Size [in] 1/2
Finish Full Polish
Item Weight [lbs] 0.420
Point Size 12
Specification_ASME ASME B107.110-2012
Length Type Deep
Overall Length [in] 3-1/4
