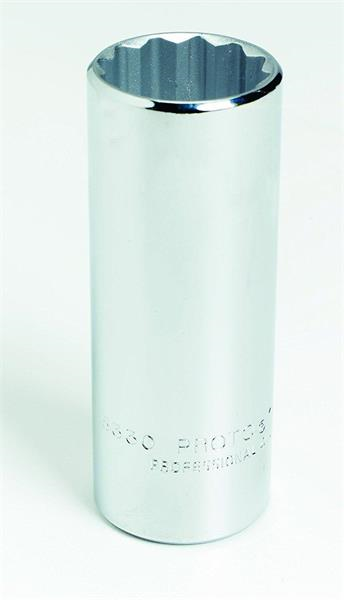

1/2 Inch Drive Deep Socket 7/8 Inch - 12 Point - Proto®

  • Item Code: J5328
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679180300
Drive Size [in] 1/2
Finish Full Polish
Point Size 12
Size [in] 7/8
Specification_ASME ASME B107.110-2012
Box Height [in] 1.370
Item Length [in] 3.300
Bolt Clearance Depth [in] 2-39/64
Box Width [in] 3.500
Harmonization Code 8204200000
Length [in] 3-1/4
Drive End Outside Diameter [in] 1-11/64
Length Type Deep
Nut End Outside Diameter [in] 1-11/64
Overall Length [in] 3-1/4
Box Length [in] 7.500
Box Quantity 6
Specification_AS AS954E S3.8.1
Brand Proto
Item Quantity 1
Item Width [in] 1.000
Nose Width [in] 1-11/64
Box Weight [lbs] 3.210
Item Height [in] 1.000
Item Weight [lbs] 0.520
Country of Origin United States
Nut Depth [in] 1-7/32
