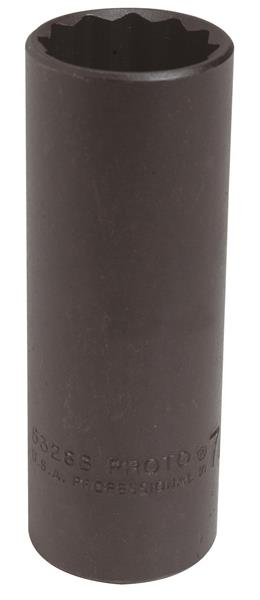

1/2 Inch Drive Black Oxide Deep Socket 7/8 Inch - 12 Point - Proto®

  • Item Code: J5328B
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679300104
Box Height [in] 1.870
Drive Size [in] 1/2
Finish Black Oxide
Length Type Deep
Size [in] 7/8
Country of Origin United States
Item Quantity 1
Item Weight [lbs] 0.500
Bolt Clearance Depth [in] 2-1/8
Harmonization Code 8204200000
Item Length [in] 3.300
Overall Length [in] 3-1/4
Length [in] 3-1/4
Point Size 12
Specification_ASME ASME B107.110-2012
Drive End Outside Diameter [in] 1-11/64
Item Width [in] 1.000
Nose Width [in] 1-11/64
Nut Depth [in] 1-3/16
Nut End Outside Diameter [in] 1-11/64
Box Length [in] 10.500
Box Quantity 6
Box Weight [lbs] 3.280
Box Width [in] 2.500
Brand Proto
Item Height [in] 1.000
Specification_AS AS954E S3.8.1
