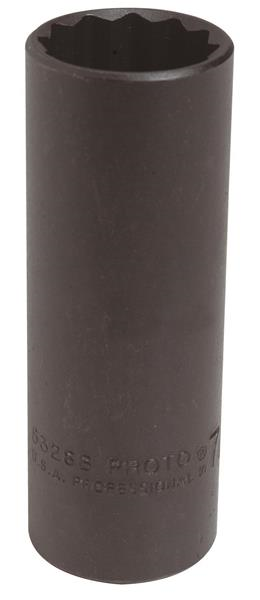

1/2 Inch Drive Black Oxide Deep Socket 1 Inch - 12 Point - Proto®

  • Item Code: J5332B
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679300128
Box Weight [lbs] 4.070
Overall Length [in] 3-1/4
Country of Origin United States
Harmonization Code 8204200000
Item Quantity 1
Item Width [in] 1.500
Nose Width [in] 1-21/64
Box Width [in] 3.500
Drive End Outside Diameter [in] 1-21/64
Drive Size [in] 1/2
Nut End Outside Diameter [in] 1-21/64
Item Height [in] 1.500
Item Weight [lbs] 0.590
Length Type Deep
Point Size 12
Specification_ASME ASME B107.110-2012
Bolt Clearance Depth [in] 2-1/8
Item Length [in] 3.300
Nut Depth [in] 1-3/16
Size [in] 1
Box Height [in] 1.870
Box Quantity 6
Finish Black Oxide
Specification_AS AS954E S3.8.1
Box Length [in] 10.500
Brand Proto
Length [in] 3-1/4
