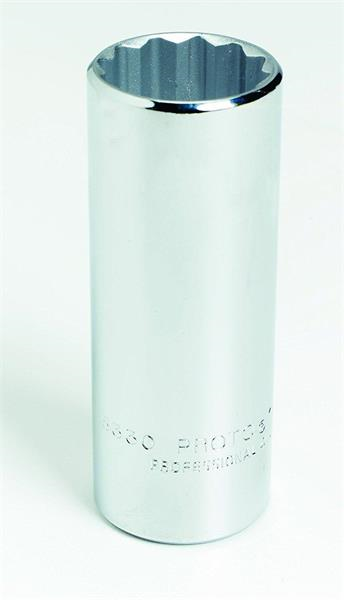

1/2 Inch Drive Deep Socket 1-1/8 Inch - 12 Point - Proto®

  • Item Code: J5336
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679180379
Brand Proto
Nut Depth [in] 1-5/32
Country of Origin United States
Item Quantity 1
Box Quantity 6
Item Weight [lbs] 0.860
Specification_AS AS954E S3.8.1
Finish Full Polish
Length [in] 3-1/4
Specification_ASME ASME B107.110-2012
Bolt Clearance Depth [in] 2-29/64
Harmonization Code 8204200000
Item Height [in] 1.400
Nut End Outside Diameter [in] 1-1/2
Box Height [in] 1.800
Box Length [in] 10.500
Box Weight [lbs] 5.320
Item Width [in] 1.400
Drive End Outside Diameter [in] 1-1/2
Drive Size [in] 1/2
Item Length [in] 3.300
Point Size 12
Box Width [in] 3.800
Length Type Deep
Overall Length [in] 3-1/4
Size [in] 1-1/8
