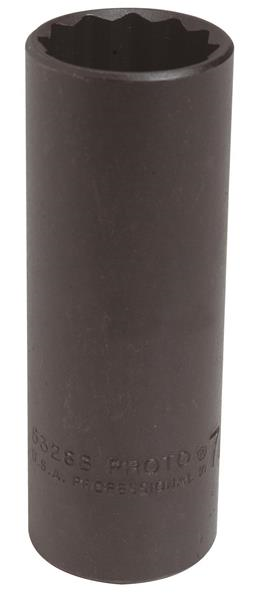

1/2 Inch Drive Black Oxide Deep Socket 1-1/8 Inch - 12 Point - Proto®

  • Item Code: J5336B
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679300142
Drive Size [in] 1/2
Item Height [in] 1.500
Length Type Deep
Point Size 12
Specification_ASME ASME B107.110-2012
Box Width [in] 4.560
Finish Black Oxide
Item Length [in] 3.300
Nut End Outside Diameter [in] 1-31/64
Specification_AS AS954E S3.8.1
Bolt Clearance Depth [in] 2-1/8
Box Quantity 6
Nut Depth [in] 1-3/16
Box Height [in] 2.000
Item Weight [lbs] 0.760
Overall Length [in] 3-1/4
Country of Origin United States
Item Quantity 1
Size [in] 1-1/8
Harmonization Code 8204200000
Item Width [in] 1.500
Box Length [in] 10.620
Length [in] 3-1/4
Nose Width [in] 1-31/64
Box Weight [lbs] 5.400
Brand Proto
Drive End Outside Diameter [in] 1-31/64
