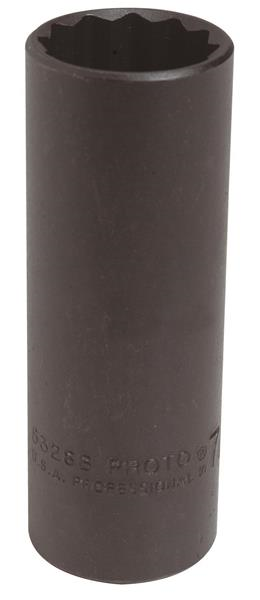

1/2 Inch Drive Black Oxide Deep Socket 1-1/4 Inch - 12 Point - Proto®

  • Item Code: J5340B
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
Nut End Outside Diameter [in] 1-37/64
UPC Code 662679300159
Box Length [in] 10.500
Item Width [in] 1.500
Box Weight [lbs] 4.740
Country of Origin United States
Drive End Outside Diameter [in] 1-37/64
Harmonization Code 8204200000
Item Quantity 1
Box Quantity 6
Specification_AS AS954E S3.8.1
Brand Proto
Item Weight [lbs] 0.790
Nut Depth [in] 1-3/16
Length [in] 3-1/4
Nose Width [in] 1-37/64
Specification_ASME ASME B107.110-2012
Box Height [in] 1.870
Box Width [in] 3.500
Drive Size [in] 1/2
Finish Black Oxide
Item Height [in] 1.500
Item Length [in] 3.300
Point Size 12
Bolt Clearance Depth [in] 2-1/8
Length Type Deep
Overall Length [in] 3-1/4
Size [in] 1-1/4
