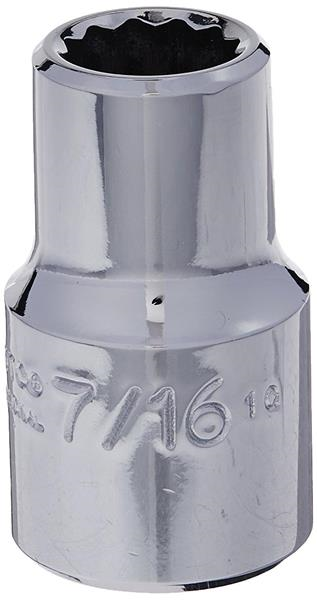

1/2 Inch Drive Socket 7/16 Inch - 12 Point - Proto®

  • Item Code: J5414
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679180461
Brand Proto
Length [ft] 1-31/64
Outside Head Width 2 [in] 1-31/64
Bolt Clearance Depth [in] 7/8
Drive End Outside Diameter [in] 55/64
Box Weight [lbs] 0.720
Item Length [in] 1.500
Overall Length [in] 1-31/64
Box Quantity 6
Item Height [in] 0.900
Specification_AS AS954E S3.8.1
Box Width [in] 2.560
Harmonization Code 8204200000
Item Quantity 1
Length Type Standard
Mouth Width 2 [in] 23/64
Box Length [in] 5.500
Country of Origin United States
Length [in] 1-31/64
Nut Depth [in] 23/64
Drive Size [in] 1/2
Finish Full Polish
Item Width [in] 0.900
Nose Width [in] 43/64
Point Size 12
Specification_ASME ASME B107.110-2012
Box Height [in] 1.190
Item Weight [lbs] 0.120
Nut End Outside Diameter [in] 43/64
Size [in] 7/16
