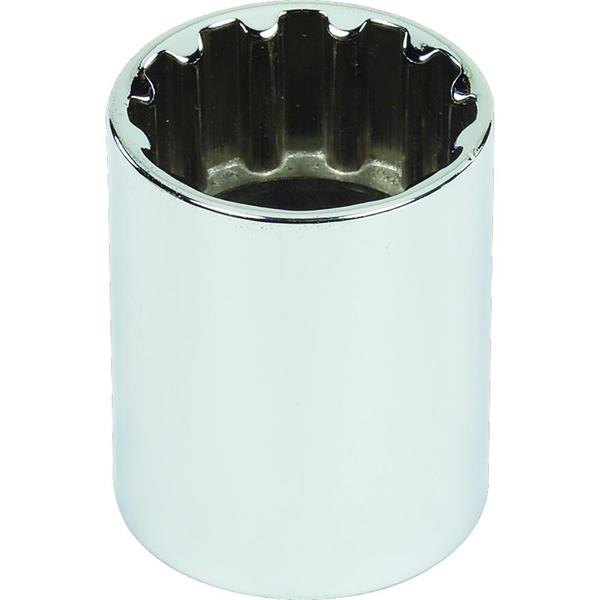

1/2 Inch Drive Socket 9/16 Inch - 12 Point - Proto®

  • Item Code: J5418
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679180560
Size [in] 9/16
Item Height [in] 0.800
Item Weight [lbs] 0.120
Box Quantity 6
Nut End Outside Diameter [in] 13/16
Specification_AS AS954E S3.8.1
Box Width [in] 2.600
Drive Size [in] 1/2
Finish Full Polish
Item Length [in] 1.500
Item Width [in] 0.800
Point Size 12
Specification_ASME ASME B107.110-2012
Box Weight [lbs] 0.770
Drive End Outside Diameter [in] 55/64
Mouth Width 2 [in] 23/64
Box Height [in] 1.100
Country of Origin United States
Length [in] 1-1/2
Bolt Clearance Depth [in] 51/64
Box Length [in] 5.500
Brand Proto
Nut Depth [in] 23/64
Overall Length [in] 1-1/2
Harmonization Code 8204200000
Item Quantity 1
Length Type Standard
