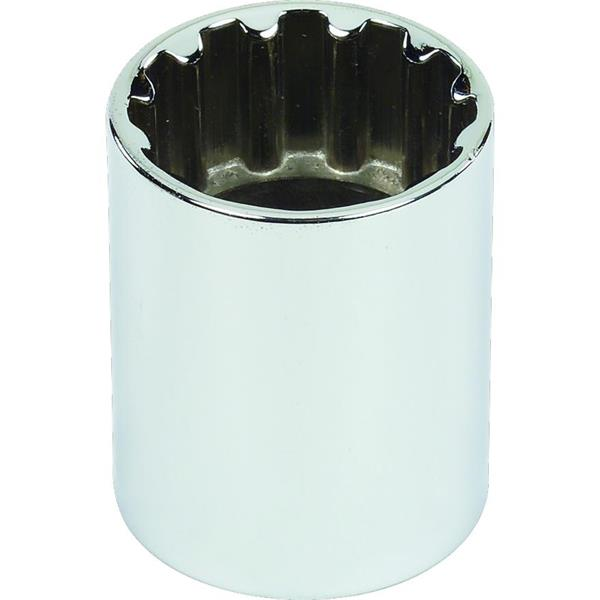

1/2 Inch Drive Socket 11/16 Inch - 12 Point - Proto®

  • Item Code: J5422
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
Carton Weight [lbs] 33.020
UPC Code 662679180683
Brand Proto
Carton Quantity 200
Drive End Outside Diameter [in] 61/64
Harmonization Code 8204200000
Length Type Standard
Nut Depth [in] 9/16
Overall Length [in] 1-1/2
Box Weight [lbs] 1.020
Size [in] 11/16
Carton Length [in] 15.300
Length [in] 1-1/2
Nose Width [in] 61/64
Nut End Outside Diameter [in] 61/64
Finish Full Polish
Item Height [in] 0.900
Item Width [in] 0.900
Box Length [in] 5.500
Country of Origin United States
Item Quantity 1
Bolt Clearance Depth [in] 21/32
Box Quantity 6
Item Length [in] 1.500
Item Weight [lbs] 0.170
Specification_AS AS954E S3.8.1
Carton Height [in] 6.000
Drive Size [in] 1/2
Point Size 12
Specification_ASME ASME B107.110-2012
Box Height [in] 1.190
Box Width [in] 2.560
Carton Width [in] 5.400
