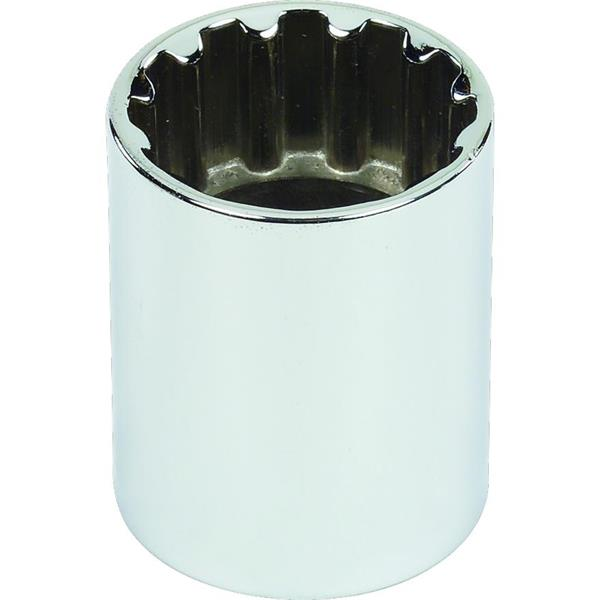

1/2 Inch Drive Socket 3/4 Inch - 12 Point - Proto®

  • Item Code: J5424
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679180737
Drive End Outside Diameter [in] 1-1/64
Brand Proto
Drive Size [in] 1/2
Length [in] 1-1/2
Box Height [in] 1.560
Box Length [in] 6.750
Length Type Standard
Overall Length [in] 1-1/2
Harmonization Code 8204200000
Item Length [in] 1.500
Bolt Clearance Depth [in] 21/32
Box Quantity 6
Item Height [in] 1.000
Item Weight [lbs] 0.170
Nut Depth [in] 11/16
Size [in] 3/4
Specification_AS AS954E S3.8.1
Item Quantity 1
Item Width [in] 1.000
Nut End Outside Diameter [in] 1-1/32
Box Weight [lbs] 1.130
Box Width [in] 2.000
Country of Origin United States
Finish Full Polish
Point Size 12
Specification_ASME ASME B107.110-2012
