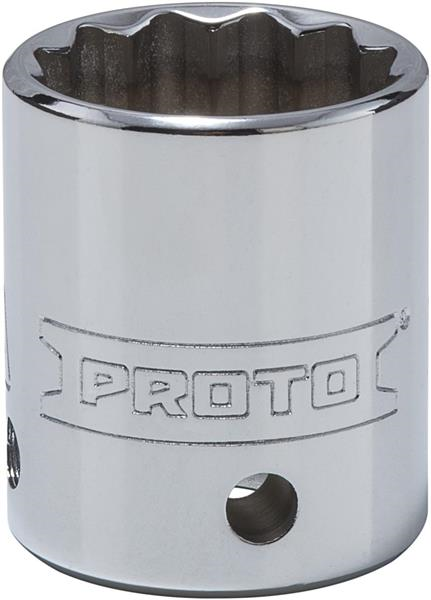

Tether-Ready 1/2 Inch Drive Socket 1 Inch - 12 Point - Proto®
- Item Code: J5432-TT
- Brand: Proto
- Unit Size: 1
Description
Proto® Tethered Tool Sockets are manufactured with four detent holes so that the pin detent will engage correctly regardless of the direction the socket is placed on the square drive.
The Positive Control System requires a separate tool to attach or remove the socket, meaning it cannot be removed without specific intent.
Chrome finish is applied after the holes are bored for better corrosion resistance.
Proto® 12 point sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
Features
Back To Top- Proto® Tethered Tool Sockets are manufactured with four detent holes so that the pin detent will engage correctly regardless of the direction the socket is placed on the square drive.
- The Positive Control System requires a separate tool to attach or remove the socket, meaning it cannot be removed without specific intent.
- Chrome finish is applied after the holes are bored for better corrosion resistance.
- Proto® 12 point sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
- The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
- The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
- The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
Tech Specs
Back To Top| Nut End Outside Diameter [in] | 1-21/64 |
|---|---|
| UPC Code | 662679117160 |
| Carton Height [in] | 6.000 |
| Carton Quantity | 42 |
| Drive Size [in] | 1/2 |
| Nose Width [in] | 1-21/64 |
| Box Width [in] | 2.600 |
| Carton Weight [lbs] | 12.650 |
| Finish | Full Polish |
| Point Size | 12 |
| Box Height [in] | 1.800 |
| Brand | Proto |
| Carton Width [in] | 5.400 |
| Harmonization Code | 8204200000 |
| Nut Depth [in] | 27/32 |
| Bolt Clearance Depth [in] | 45/64 |
| Carton Length [in] | 15.300 |
| Country of Origin | United States |
| Item Length [in] | 1.600 |
| Item Quantity | 1 |
| Box Quantity | 6 |
| Box Weight [lbs] | 1.810 |
| Item Weight [lbs] | 0.300 |
| Item Width [in] | 1.400 |
| Specification_ASME | ASME B107.1 |
| Drive End Outside Diameter [in] | 1-5/16 |
| Item Height [in] | 1.400 |
| Length Type | Standard |
| Overall Length [in] | 1-9/16 |
| Box Length [in] | 7.700 |
| Size [in] | 1 |
| Specification_AS | AS954E S3.8.1 |
