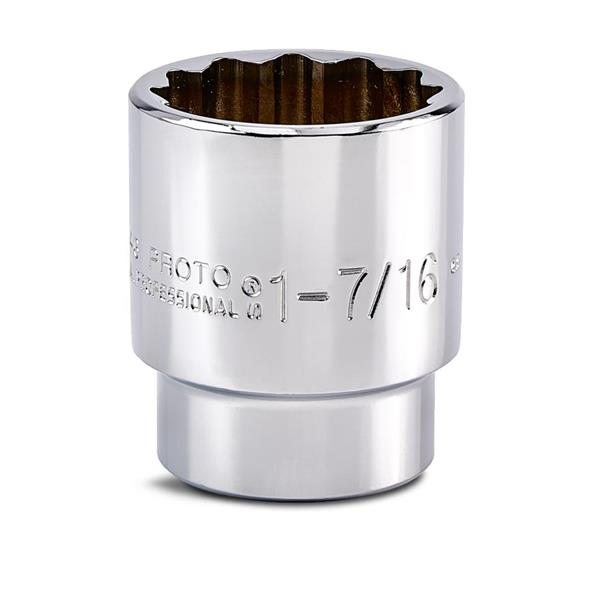

1/2 Inch Drive Socket 1-7/16 Inch - 12 Point - Proto®

  • Item Code: J5446
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Tech Specs

Back To Top
UPC Code 662679181321
Box Weight [lbs] 4.880
Box Width [in] 3.300
Harmonization Code 8204200000
Box Height [in] 2.600
Drive End Outside Diameter [in] 1-5/8
Item Height [in] 1.900
Finish Full Polish
Item Weight [lbs] 0.800
Point Size 12
Specification_ASME ASME B107.110-2012
Box Quantity 6
Nut End Outside Diameter [in] 1-59/64
Drive Size [in] 1/2
Item Width [in] 1.900
Nut Depth [in] 27/32
Overall Length [in] 2-1/8
Box Length [in] 11.800
Item Length [in] 2.100
Bolt Clearance Depth [in] 1-19/64
Country of Origin United States
Item Quantity 1
Length Type Standard
Size [in] 1-7/16
Brand Proto
Length [in] 2-1/8
Nose Width [in] 1-59/64
Specification_AS AS954E S3.8.1
