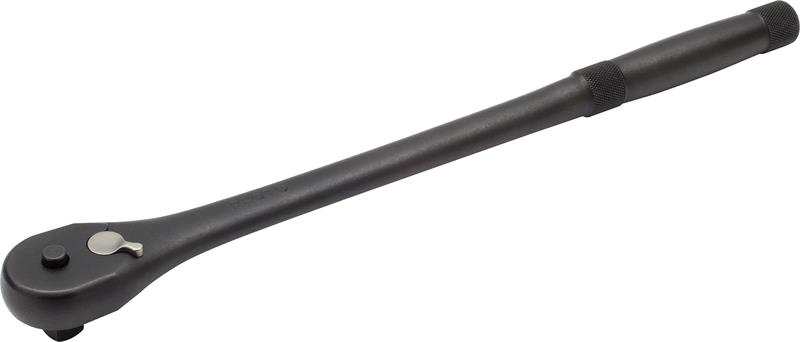

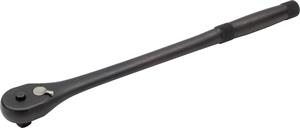

1/2 Inch Drive Premium Quick-Release Pear Head Ratchet 10-1/2 Inch - Black Oxide - Proto®

  • Item Code: J5449XLQRBL
  • Brand: Proto
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Small pear head design for access in tight, hard-to-reach work areas.
    • 45-tooth gear provides balance between 8° articulation angle and high torque carrying capacity.
    • Sealed design helps prevent debris from entering ratchet mechanism reducing wear. Also, helps to keep lubrication contained within the components. Patent pending design.
    • Low profile reversing lever design for quick, one-hand operation.
    • Contoured, ergonomically designed handle for comfort. Knurled bands allow for increased grip and slip resistance.
    • Double nickel chrome plated for enhanced corrosion protection or black oxide finish.
    • Field repairable.

Tech Specs

Back To Top
Box Weight [lbs] 10.230
Carton Weight [lbs] 34.160
UPC Code 662679081478
Item Quantity 1
Item Weight [lbs] 1.710
Specification_ASME ASME B107.10M
Style Quick-Release
Box Length [in] 13.600
Box Quantity 6
Brand Proto
Finish Black Oxide
Carton Quantity 20
Carton Width [in] 5.500
Harmonization Code 8466100175
Item Length [in] 10.500
Box Width [in] 4.200
Carton Height [in] 6.000
Drive Size [in] 1/2
Country of Origin United States
Item Width [in] 1.800
Box Height [in] 2.000
Carton Length [in] 15.500
Item Height [in] 1.600
Overall Length [in] 10-1/2
