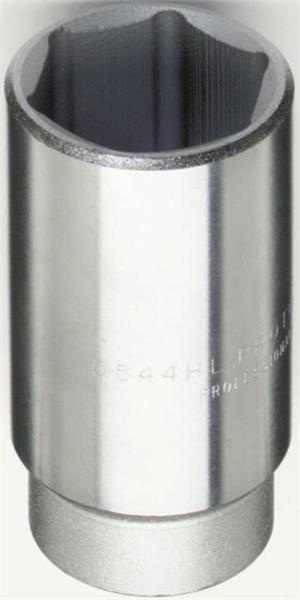

3/4 Inch Drive Deep Socket 7/8 Inch - 6 Point - Proto®

  • Item Code: J5528HL
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 6 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
    • Made from alloy steel.
    • Heat-treated for strength and durability.
    • Hand use only.
    • Ball detent design.

Tech Specs

Back To Top
Box Weight [lbs] 5.560
Carton Weight [lbs] 37.220
UPC Code 662679200114
Carton Height [in] 6.000
Item Height [in] 1.500
Length Type Deep
Size [in] 7/8
Specification_ASME ASME B107.110-2012
Drive Size [in] 3/4
Item Quantity 1
Brand Proto
Finish Satin
Item Weight [lbs] 0.910
Box Width [in] 3.300
Carton Quantity 40
Drive End Outside Diameter [in] 1-3/8
Harmonization Code 8204200000
Box Length [in] 11.800
Carton Length [in] 15.300
Carton Width [in] 5.400
Item Length [in] 3.500
Overall Length [in] 3-1/2
Point Size 6
Nut Depth [in] 9/16
Bolt Clearance Depth [in] 2-9/16
Nut End Outside Diameter [in] 1-3/8
Box Height [in] 2.500
Box Quantity 6
Country of Origin United States
Item Width [in] 1.500
Length [in] 3-1/2
