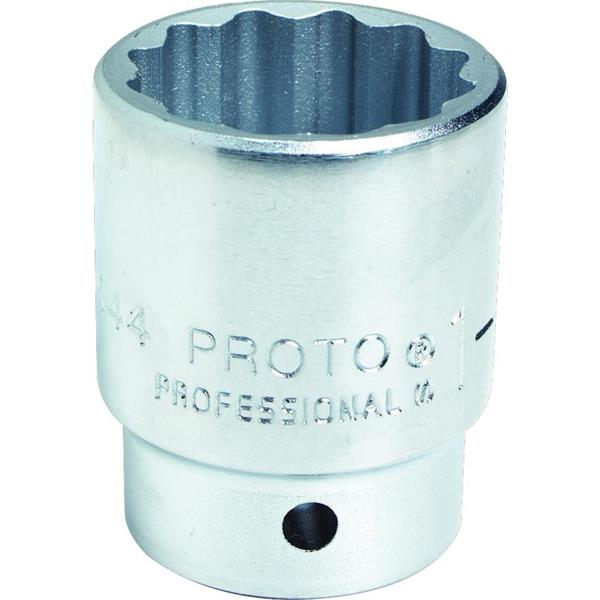

3/4 Inch Drive Socket 1-1/8 Inch - 12 Point - Proto®

  • Item Code: J5536
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
    • Ball detent design.
    • Made of heat-treated alloy steel.
    • Side locking hole.

Tech Specs

Back To Top
Carton Weight [lbs] 31.750
Drive End Outside Diameter [in] 1-15/32
Overall Length [in] 2-7/32
UPC Code 662679200244
Carton Length [in] 15.300
Country of Origin United States
Item Quantity 1
Nose Width [in] 1-37/64
Point Size 12
Specification_ASME ASME B107.110-2012
Box Height [in] 1.870
Carton Width [in] 5.400
Drive Size [in] 3/4
Harmonization Code 8204200000
Nut Depth [in] 25/32
Finish Satin
Box Weight [lbs] 3.750
Length Type Standard
Bolt Clearance Depth [in] 1
Brand Proto
Carton Height [in] 6.000
Item Height [in] 1.500
Item Length [in] 2.200
Item Weight [lbs] 0.630
Nut End Outside Diameter [in] 1-37/64
Size [in] 1-1/8
Box Width [in] 2.500
Length [in] 2-7/32
Box Length [in] 10.500
Box Quantity 6
Carton Quantity 50
Item Width [in] 1.500
