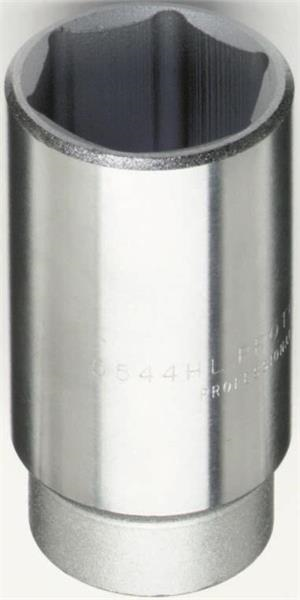

3/4 Inch Drive Deep Socket 1-7/16 Inch - 6 Point - Proto®

  • Item Code: J5546HL
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 6 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
    • Made from alloy steel.
    • Heat-treated for strength and durability.
    • Hand use only.
    • Ball detent design.

Tech Specs

Back To Top
Box Height [in] 2.300
Box Weight [lbs] 9.380
Nut Depth [in] 61/64
UPC Code 662679200381
Box Quantity 6
Drive Size [in] 3/4
Item Length [in] 3.500
Length [in] 3-1/2
Nut End Outside Diameter [in] 2-1/16
Specification_ASME ASME B107.110-2012
Bolt Clearance Depth [in] 2-1/4
Box Width [in] 4.250
Item Width [in] 2.000
Box Length [in] 13.310
Country of Origin United States
Drive End Outside Diameter [in] 1-21/32
Item Weight [lbs] 1.640
Finish Satin
Overall Length [in] 3-1/2
Point Size 6
Harmonization Code 8204200000
Length Type Deep
Brand Proto
Item Height [in] 2.000
Item Quantity 1
Mouth Width 2 [in] 61/64
Size [in] 1-7/16
