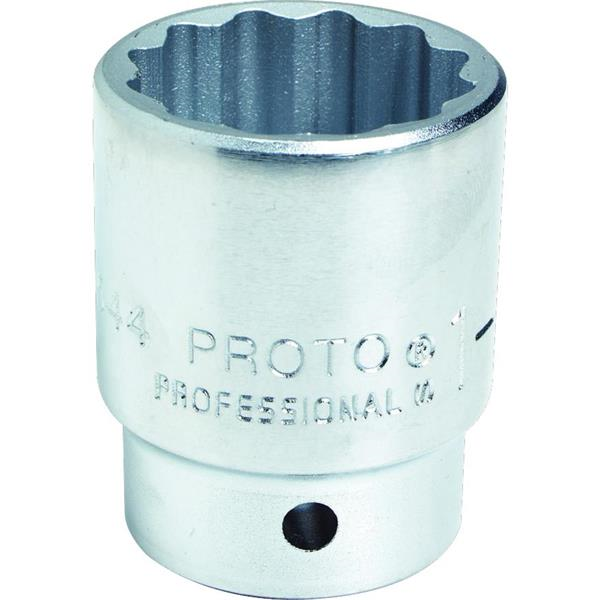

3/4 Inch Drive Socket 1-3/4 Inch - 12 Point - Proto®

  • Item Code: J5556
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
    • Ball detent design.
    • Made of heat-treated alloy steel.
    • Side locking hole.

Tech Specs

Back To Top
Box Weight [lbs] 8.880
UPC Code 662679200497
Item Height [in] 2.400
Item Width [in] 2.400
Length [in] 2-3/4
Point Size 12
Specification_ASME ASME B107.110-2012
Box Height [in] 2.500
Country of Origin United States
Item Weight [lbs] 1.430
Size [in] 1-3/4
Bolt Clearance Depth [in] 1-15/32
Box Width [in] 3.300
Brand Proto
Box Quantity 6
Drive Size [in] 3/4
Nut Depth [in] 1-13/64
Nut End Outside Diameter [in] 2-3/8
Mouth Width 2 [in] 1-13/64
Overall Length [in] 2-3/4
Box Length [in] 15.700
Drive End Outside Diameter [in] 1-3/4
Harmonization Code 8204200000
Item Length [in] 2.900
Item Quantity 1
Length Type Standard
Finish Satin
