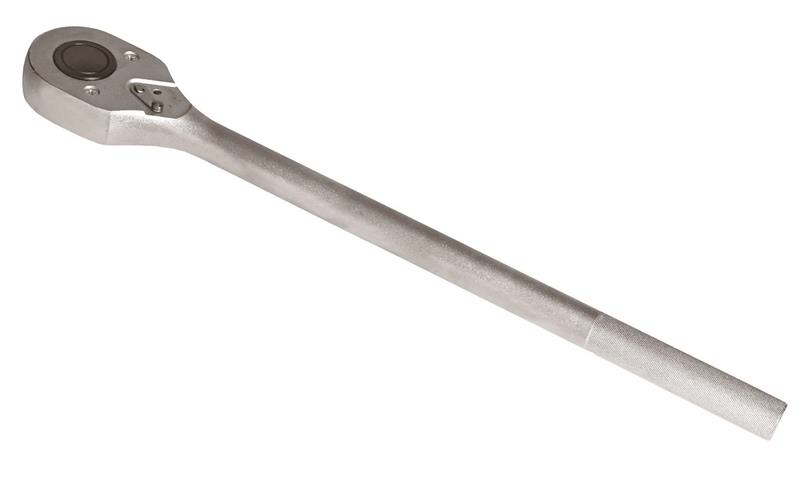

1 Inch Drive Classic Pear Head Ratchet Male/Female Drive 26 Inch - Proto®

  • Item Code: J5849
  • Brand: Proto
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • An extra safety factor is provided through the use of a spring-loaded pellet in each male drive plug that snaps into a hole in the drive end of the socket and acts as a retaining pin. The socket stays locked on until the pellet is depressed and the socket is removed.
    • Unique 24-tooth gear design provides 15° ratcheting angle while maximizing ultimate torque.
    • Thin head design for access into tight work areas.
    • Reversing lever designed for quick, one-hand operation.

Tech Specs

Back To Top
Box Length [in] 26.100
Box Weight [lbs] 11.290
Item Length [in] 26.000
Item Weight [lbs] 12.960
Overall Length [in] 26
UPC Code 662679210359
Box Height [in] 1.600
Box Width [in] 3.800
Item Width [in] 3.700
Harmonization Code 8466100175
Brand Proto
Drive Size [in] 1
Item Height [in] 2.500
Finish Satin
Style Pear Head
Box Quantity 1
Item Quantity 1
Specification_ASME ASME B107.10M
Country of Origin United States
