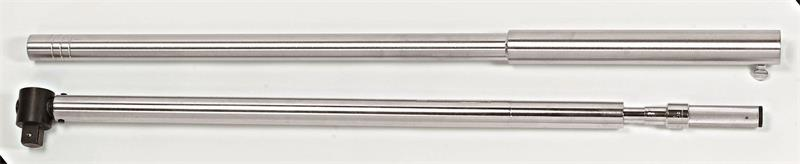

1 Inch Drive Fixed Head Micrometer Torque Wrench 200-1000 ft-lbs - Proto®

  • Item Code: J6023
  • Brand: Proto
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Includes an extension handle.
    • Torque wrench is 40" long. Weight and over all length are for torque wrench with the extension handle.
    • Packaged in a metal box for easy storage.
    • Calibrated ± 4% of torque reading clockwise and ±4% counter clockwise at 20% to 100% of full scale.
    • Certified wrenches to ±2% one direction are available upon request.

Tech Specs

Back To Top
Accuracy CCW +/- 4%
Box Height [in] 5.000
Box Length [in] 45.000
Box Weight [lbs] 37.000
Head Depth [in] 2-1/4
Item Weight [lbs] 39.500
Maximum Torque [Ft Lbs] 1000
Overall Length [in] 69
Specification_AS AS28431
Torque Range [Ft Lbs] 200-1000
UPC Code 662679131043
Accuracy CW +/- 4%
Drive Size [in] 1
Item Height [in] 4.300
Specification_JIS JIS B4650
Box Width [in] 6.500
Item Length [in] 47.000
Minimum Torque [Ft Lbs] 200
Style Micrometer
Finish Full Polish
Increments [Ft Lbs] 5
Box Quantity 1
Item Quantity 1
Harmonization Code 8466100175
Head Width 1 [in] 1-7/8
Specification_ISO ISO 6789
Specification_TO TO33K6-4-2193-1
Brand Proto
Specification_ASME ASME B107.14M
Country of Origin United States
Item Width [in] 4.700
