1 Inch Drive Fixed Head Micrometer Torque Wrench 400-2000 ft-lbs - Proto®

  • Item Code: J6025
  • Brand: Proto
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top

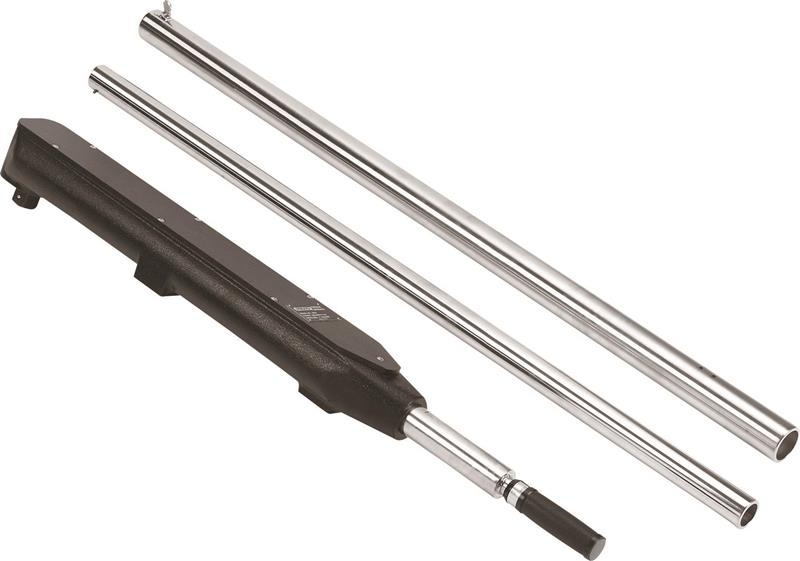

    • Includes two extension handles, each 43" long.
    • Torque wrench is 34-1/4" long. Weight and overall length are for torque wrench assembled with both extension handles.
    • Calibrated ±4% of torque reading clockwise at 20% to 100% of full scale.

Tech Specs

Back To Top
Box Length [in] 45.400
Box Weight [lbs] 53.000
Head Depth [in] 4-1/8
Head Width 1 [in] 3-1/16
Item Length [in] 40.500
Item Weight [lbs] 56.330
Item Width [in] 9.100
Maximum Torque [Ft Lbs] 2000
Overall Length [in] 107-1/2
Specification_JIS JIS B4650
Torque Range [Ft Lbs] 400-2000
UPC Code 662679130213
Accuracy CCW +/- 6%
Brand Proto
Increments [Ft Lbs] 10
Specification_ASME ASME B107.14M
Minimum Torque [Ft Lbs] 400
Accuracy CW +/- 4%
Box Width [in] 9.300
Drive Size [in] 1
Finish Full Polish
Box Height [in] 5.600
Item Height [in] 5.800
Harmonization Code 8466100175
Style Micrometer
Box Quantity 1
Country of Origin United States
Item Quantity 1
Specification_ISO ISO 6789
Specification_AS AS28431
Specification_TO TO33K6-4-2193-1
