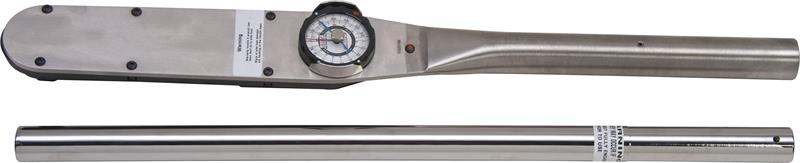

3/4 Inch Drive Dial Torque Wrench 70-350 ft-lbs - Proto®

  • Item Code: J6134F
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Accurate to ± 4% of torque reading in both directions at 20% to 100% of full scale.
    • Industrial all steel or aluminum torque transfer components.
    • High alloy torsion drive design €” accuracy not effected by hand position.
    • Dual scale (English/Metric) with clockwise and counterclockwise operation €” fewer wrenches needed to complete job.
    • Memory needles are standard on all wrenches except electric light models.
    • Easy-to-read, high contrast scale.
    • Laser marked serial number for traceability.
    • N.I.S.T. (National Institute of Standards and Technology) traceable CW certification supplied with each wrench.
    • J6133F and J6141F include 1 removable extension handle for easy force application.

Tech Specs

Back To Top
Item Weight [lbs] 9.870
Maximum Torque [Ft Lbs] 350
Minimum Torque [Ft Lbs] 70
Overall Length [in] 27-7/8
Torque Range [Ft Lbs] 70-350
UPC Code 662679135416
Box Length [in] 19.300
Item Width [in] 6.000
Drive Size [in] 3/4
Increments [Ft Lbs] 10
Item Height [in] 4.000
Specification_ASME ASME B107.14M
Specification_JIS JIS B4650
Box Height [in] 2.500
Box Quantity 1
Country of Origin United States
Item Quantity 1
Specification_ISO ISO 6789
Box Width [in] 3.000
Finish Full Polish
Harmonization Code 8466100175
Brand Proto
Item Length [in] 28.000
Box Weight [lbs] 2.980
Style Dial
