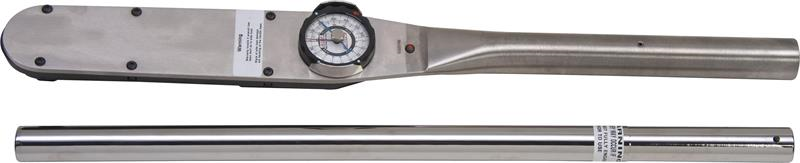

1 Inch Drive Dial Torque Wrench 400-2000 ft-lbs, 56-280 mkg - Proto®
- Item Code: J6149F
- Brand: Proto
- Unit Size: 1
- Accurate to ± 4% of torque reading in both directions at 20% to 100% of full scale.
- Industrial all steel or aluminum torque transfer components.
- High alloy torsion drive design €” accuracy not effected by hand position.
- Dual scale (English/Metric) with clockwise and counterclockwise operation €” fewer wrenches needed to complete job.
- Memory needles are standard on all wrenches except electric light models.
- Easy-to-read, high contrast scale.
- Laser marked serial number for traceability.
- N.I.S.T. (National Institute of Standards and Technology) traceable CW certification supplied with each wrench.
- J6149F includes 5 removable extensions (requires 2 operators) and electric LED and buzzer.
| Box Length [in] |
19.300 |
| Increments [Ft Lbs] |
40 |
| Item Weight [lbs] |
40.910 |
| Minimum Torque [Ft Lbs] |
400 |
| Overall Length [in] |
110-3/4 |
| Torque Range |
56-280 mkg |
| UPC Code |
662679135430 |
| Box Width [in] |
3.000 |
| Finish |
Full Polish |
| Specification_ASME |
ASME B107.14M |
| Box Quantity |
1 |
| Specification_ISO |
ISO 6789 |
| Specification_JIS |
JIS B4650 |
| Box Height [in] |
2.500 |
| Country of Origin |
United States |
| Item Quantity |
1 |
| Item Width [in] |
10.500 |
| Torque Range [Ft Lbs] |
400-2000 |
| Brand |
Proto |
| Box Weight [lbs] |
2.980 |
| Harmonization Code |
8466100175 |
| Item Height [in] |
7.300 |
| Maximum Torque [Ft Lbs] |
2000 |
| Item Length [in] |
32.300 |
| Drive Size [in] |
1 |
| Style |
Dial |
