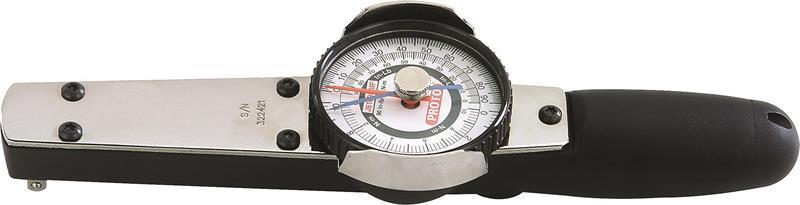

1/4 Inch Drive Dial Torque Wrench 2-10 Nm, 18-90 in-lbs - Proto®

  • Item Code: J6169NMF
  • Brand: Proto
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 2-10 Nm thru 50-250 Nm / 18-90 in-lbs thru 35-175 ft-lbs
    • Accurate to ± 4% of torque reading in both directions at 20% to 100% of full scale.
    • Industrial all steel or aluminum torque transfer components.
    • High alloy torsion drive design €” accuracy not effected by hand position.
    • Dual scale (Metric/English) with clockwise and counterclockwise operation €” fewer wrenches needed to complete job.
    • Memory needles are standard on all wrenches except electric light models.
    • Easy-to-read, high contrast scale.
    • Laser marked serial number for traceability.
    • N.I.S.T. (National Institute of Standards and Technology) traceable CW certification supplied with each wrench.

Tech Specs

Back To Top
Increments [NM] 0.2
Maximum Torque [In Lbs] 90
Maximum Torque [Nm] 10
Minimum Torque [In Lbs] 18
Minimum Torque [Nm] 2
Torque Range [In Lbs] 18-90
Torque Range [Nm] 2-10
UPC Code 662679135461
Box Weight [lbs] 2.980
Item Length [in] 11.100
Finish Full Polish
Item Height [in] 3.200
Item Width [in] 5.500
Box Width [in] 3.000
Box Quantity 1
Item Quantity 1
Overall Length [in] 10
Box Length [in] 19.300
Drive Size [in] 1/4
Specification_ASME ASME B107.14M
Box Height [in] 2.500
Country of Origin United States
Item Weight [lbs] 1.960
Style Dial
Brand Proto
Harmonization Code 8466100175
