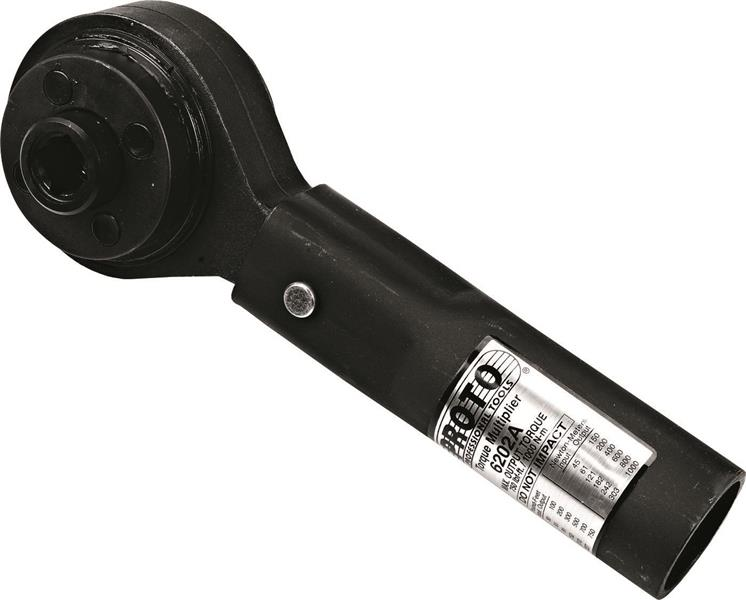

Torque Multiplier 750 ft-lbs - Proto®

  • Item Code: J6202A
  • Brand: Proto
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Maximum rated input: 227 ft-lbs (308 Nm).
    • Maximum rated output: 750 ft-lbs (1017 Nm).
    • Standard torque accuracy is +/- 5% of reading.
    • Reaction system: tubular reaction bar.
    • Gear system: single stage planetary.

Tech Specs

Back To Top
Accuracy CCW 5%
Head Length [in] 2-13/16
Item Weight [lbs] 4.770
N.I.S.T Certificate [variant] J6202ACERT
UPC Code 662679131418
Box Height [in] 2.000
Box Length [in] 11.000
Input Drive [in] 1/2
Item Height [in] 3.800
Output Drive [in] 3/4
Case Type Blow molded box
Overall Length [in] 8-19/32
Box Quantity 1
Item Quantity 1
Box Width [in] 6.000
Handle Length [in] 5-1/4
Harmonization Code 8466100175
Item Length [in] 11.000
Item Width [in] 6.000
Accuracy CW 5%
Box Weight [lbs] 4.800
Brand Proto
Country of Origin United States
Head Depth [in] 3-3/32
