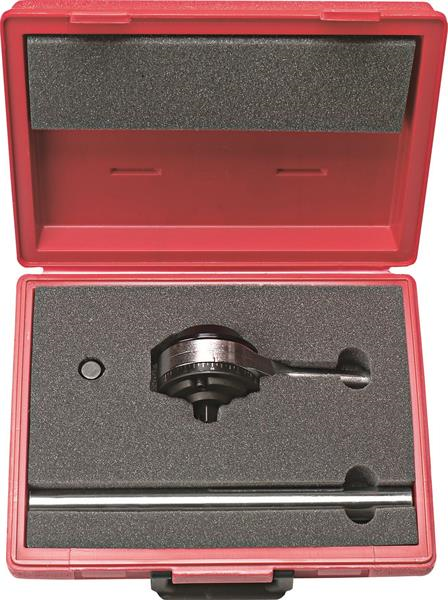

Torque Multiplier 1200 ft-lbs - Proto®

  • Item Code: J6212
  • Brand: Proto
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Maximum rated input: 200 ft-lbs (271 Nm).
    • Maximum rated output: 1200 ft-lbs (1626 Nm).
    • Standard torque accuracy is +/- 5% of reading.
    • Reaction system: tubular reaction bar.
    • Gear system: single stage planetary.
    • Angle of turn protractor: 5° increments.

Tech Specs

Back To Top
Box Height [in] 16.200
Box Weight [lbs] 13.090
Head Depth [in] 4
Item Weight [lbs] 13.360
Item Width [in] 12.800
N.I.S.T Certificate [variant] J6212CERT
Overall Length [in] 19-19/32
UPC Code 662679130350
Finish Full Polish
Output Drive [in] 3/4
Harmonization Code 8466100175
Item Height [in] 5.200
Input Drive [in] 1/2
Accuracy CCW 5%
Accuracy CW 5%
Box Quantity 1
Box Width [in] 5.200
Country of Origin United States
Item Quantity 1
Handle Length [in] 14-1/8
Head Length [in] 3-15/16
Brand Proto
Box Length [in] 12.700
Case Type Blow molded box
Item Length [in] 16.100
