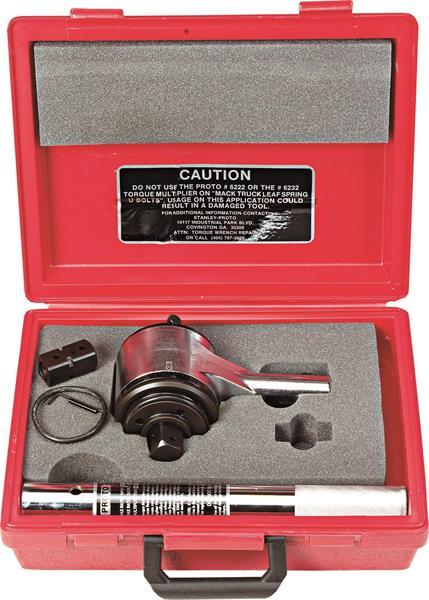

Torque Multiplier 3200 ft-lbs - Proto®

  • Item Code: J6232CERT
  • Brand: Proto
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Maximum rated input: 173 ft-lbs (235 Nm).
    • Maximum rated output: 3200 ft-lbs (4338 Nm).
    • Standard torque accuracy is +/- 5% of reading.
    • Reaction system: tubular reaction bar.
    • Gear system: two stage planetary.
    • Angle of turn protractor: 5° increments.
    • Anti-backlash device: self-contained, 3 position.
    • Certification documents traceable to N.I.S.T. (National Institute of Standards and Technology). CERT Version Only.

Tech Specs

Back To Top
Item Weight [lbs] 22.340
UPC Code 662679132217
Finish Full Polish
Input Drive [in] 1/2
Item Length [in] 16.100
Item Width [in] 7.500
Country of Origin United States
Harmonization Code 8466100175
Output Drive [in] 1
Handle Length [in] 14-1/8
Head Depth [in] 6-1/2
Brand Proto
Item Height [in] 5.200
Head Length [in] 4-1/16
Item Quantity 1
Overall Length [in] 19-19/32
