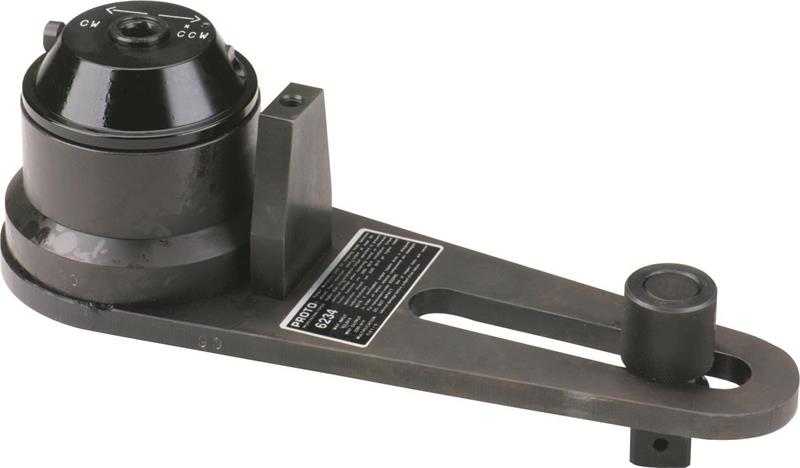

Torque Multiplier 2200 ft-lbs - Proto®

  • Item Code: J6234
  • Brand: Proto
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Maximum rated input: 162 ft-lbs (220 Nm).
    • Maximum rated output: 2200 ft-lbs (2983 Nm).
    • Standard torque accuracy is +/- 5% of reading.
    • Reaction system: reaction plate with slave drive
    • Gear system: three stage planetary.
    • Anti-backlash device: self-contained, 3 position.
    • Can be used for Mack truck leaf springs.

Tech Specs

Back To Top
Accuracy CW 5%
Box Height [in] 8.200
Box Length [in] 19.000
Box Weight [lbs] 20.250
Head Depth [in] 5-1/2
Item Weight [lbs] 20.820
UPC Code 662679130435
Item Width [in] 6.000
Harmonization Code 8466100175
Item Length [in] 20.500
Overall Length [in] 14
Accuracy CCW 5%
Box Quantity 1
Country of Origin United States
Item Quantity 1
Head Length [in] 4-7/8
Input Drive [in] 1/2
Box Width [in] 8.200
Brand Proto
Item Height [in] 7.800
Output Drive [in] 1
