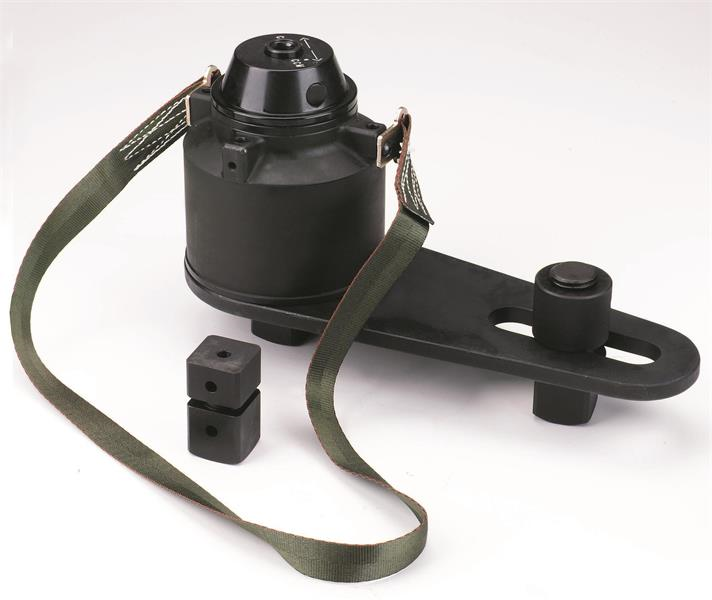

Torque Multiplier 5000 ft-lbs - Proto®

  • Item Code: J6242
  • Brand: Proto
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Maximum rated input: 189 ft-lbs (256 Nm).
    • Maximum rated output: 5000 ft-lbs (6778 Nm).
    • Standard torque accuracy is +/- 5% of reading.
    • Reaction system: reaction plate with slave drive.
    • Gear system: three stage planetary.
    • Anti-backlash device: self-contained, 3 position.

Tech Specs

Back To Top
Head Depth [in] 8-3/4
Head Length [in] 5-5/8
Item Height [in] 9.100
Item Length [in] 20.600
Item Weight [lbs] 42.270
Item Width [in] 14.900
Overall Length [in] 14-29/32
UPC Code 662679130442
Brand Proto
Input Drive [in] 1/2
Accuracy CCW 5%
Accuracy CW 5%
Country of Origin United States
Item Quantity 1
Output Drive [in] 1-1/2
Box Quantity 1
Harmonization Code 8466100175
Box Weight [lbs] 41.400
