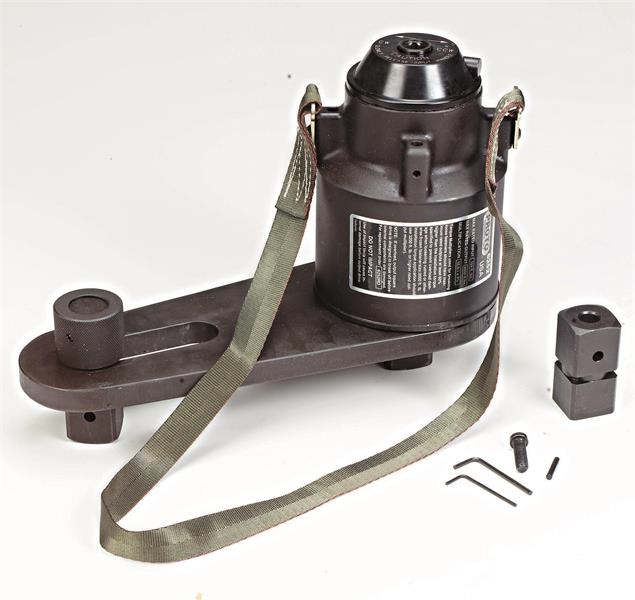

Torque Multiplier 8000 ft-lbs - Proto®

  • Item Code: J6252
  • Brand: Proto
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Maximum rated input: 154 ft-lbs (209 Nm).
    • Maximum rated output: 8000 ft-lbs (10846 Nm).
    • Standard torque accuracy is +/- 5% of reading.
    • Reaction system: reaction plate with slave drive.
    • Gear system: three stage planetary.
    • Anti-backlash device: self-contained, 3 position.

Tech Specs

Back To Top
Box Height [in] 11.400
Box Weight [lbs] 57.040
Head Depth [in] 10-3/4
Head Length [in] 5-13/16
Item Weight [lbs] 57.530
Item Width [in] 15.300
Overall Length [in] 15-3/16
UPC Code 662679130459
Box Quantity 1
Item Height [in] 9.200
Box Width [in] 11.300
Input Drive [in] 1/2
Accuracy CCW 5%
Country of Origin United States
Item Quantity 1
Output Drive [in] 1-1/2
Box Length [in] 17.300
Brand Proto
Harmonization Code 8466100175
Item Length [in] 20.500
Accuracy CW 5%
