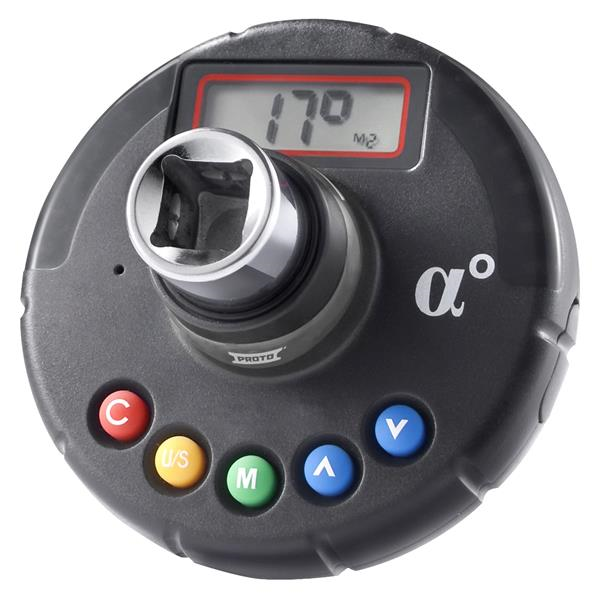

3/8 Inch Drive Digital Torque and Angle Adapter 5-99.5 ft-lbs - Proto®

  • Item Code: J6280TA100
  • Brand: Proto
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Torque and angle tightening with one tool: productivity improvement, digital display minimizes reading errors, and delivers high precision.
    • +/-2° (rotating 90° at speed of 30° / sec) for angle accuracy.
    • +/-3% clockwise or +/-4% counter clockwise for torque accuracy.
    • LEDs for easy viewing of results and audible beep when desired level is reached.
    • Buzzer and LED indicator for the 9 pre-settable target torques or angles.
    • Five Units Selectable (N.m, ft-lb, in.lb, kg.cm, degree).
    • 50 data memory for recall and joint torque-angle auditing.
    • Auto Sleep after about 2 minutes idle.
    • Both AAA and rechargeable batteries are compatible.

Tech Specs

Back To Top
Accuracy CCW +/-4%, +/-2°
Accuracy CW +/-3%, +/-2°
Carton Weight [lbs] 23.960
Case Type Blow-Molded Case
Maximum Torque [Ft Lbs] 99.5
Maximum Torque [In Lbs] 1195
Maximum Torque [Nm] 135
Minimum Torque [In Lbs] 60
Minimum Torque [Nm] 6.8
Outside Head Width 2 [in] 3-23/64
Storage Case Part Number J6310PB
Torque Range [Ft Lbs] 5-99.5
Torque Range [In Lbs] 60-1195
Torque Range [Nm] 6.8-135
UPC Code 662679098377
Battery Type 2 AAA included
Item Length [in] 5.800
Item Quantity 1
Carton Width [in] 16.200
Drive Size [in] 3/8
Minimum Torque [Ft Lbs] 5
Overall Length [in] 3-23/64
Brand Proto
Carton Length [in] 20.400
Carton Quantity 18
Item Height [in] 4.100
Material Steel/Plastic
Country of Origin Taiwan
Item Width [in] 5.100
Carton Height [in] 9.400
Specification_ASME ASME B107.28
Harmonization Code 8466100175
Item Weight [lbs] 1.330
