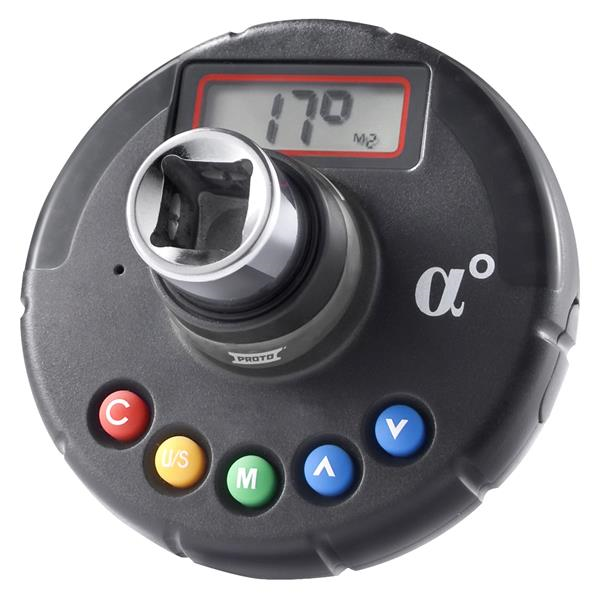

1/2 Inch Drive Digital Torque and Angle Adapter 12.5-250.7 ft-lbs - Proto®

  • Item Code: J6280TA250
  • Brand: Proto
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Torque and angle tightening with one tool: productivity improvement, digital display minimizes reading errors, and delivers high precision.
    • +/-2° (rotating 90° at speed of 30° / sec) for angle accuracy.
    • +/-3% clockwise or +/-4% counter clockwise for torque accuracy.
    • LEDs for easy viewing of results and audible beep when desired level is reached.
    • Buzzer and LED indicator for the 9 pre-settable target torques or angles.
    • Five Units Selectable (N.m, ft-lb, in.lb, kg.cm, degree).
    • 50 data memory for recall and joint torque-angle auditing.
    • Auto Sleep after about 2 minutes idle.
    • Both AAA and rechargeable batteries are compatible.

Tech Specs

Back To Top
Battery Type 2 AAA included
Carton Weight [lbs] 24.350
Material Steel/Plastic
Maximum Torque [Ft Lbs] 250.7
Maximum Torque [In Lbs] 3009
Maximum Torque [Nm] 340
Minimum Torque [Ft Lbs] 12.5
Minimum Torque [In Lbs] 150
Minimum Torque [Nm] 17
Storage Case Part Number J6425PB
Torque Range [Ft Lbs] 12.5-250.7
Torque Range [In Lbs] 150-3009
Torque Range [Nm] 17-340
UPC Code 662679098391
Accuracy CW +/-3%, +/-2°
Carton Length [in] 20.400
Carton Quantity 18
Case Type Blow-Molded Case
Item Length [in] 5.800
Item Quantity 1
Country of Origin Taiwan
Harmonization Code 8466100175
Item Weight [lbs] 1.350
Outside Head Width 2 [in] 3-23/64
Accuracy CCW +/-4%, +/-2°
Carton Width [in] 16.200
Item Height [in] 4.200
Item Width [in] 5.100
Brand Proto
Drive Size [in] 1/2
Carton Height [in] 9.400
Specification_ASME ASME B107.28
Overall Length [in] 3-23/64
