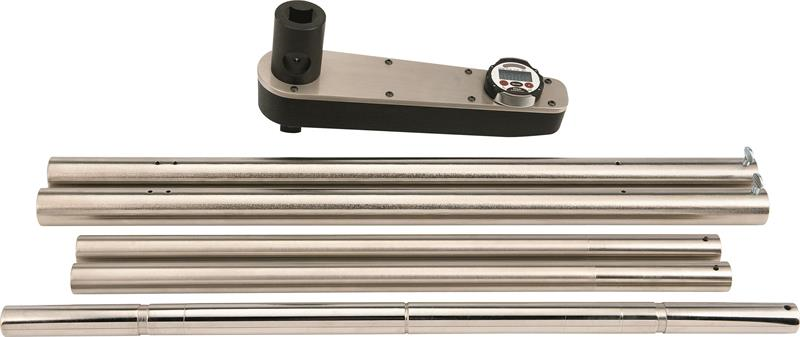

1 Inch Drive Dial Electronic Torque Wrench 100-1000 ft-lbs - Proto®

  • Item Code: J6349
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Extended operation range in ft-lb and Nm units.
    • Precision Accuracy: + / - 1% in BOTH directions.
    • Accuracy valid from 10% to 100% of full scale.
    • Large easy to read digits.
    • Patented rotary bezel. LCD and key pad rotate both ways, up to 359 degrees for easy viewing.
    • Torque target zone adjustable 1% to 10% indicates when the desired torque limit is approaching. €“ Yellow light indicates the low end of the zone €“ Green light and buzzer sounds when the target is reached €“ Red Light with intermittent buzzer indicates over-torqued
    • One button target torque setting.
    • Ergonomically designed for user comfort.
    • Operates on standard 9 volt battery.
    • Torsion drive strain gauge technology improves accuracy. €“ Users can pull on the handle anywhere and still maintain accuracy.
    • Built on durable chrome body (not painted) with nylon-6 rotary bezel.
    • Rotary dial is shrouded with metal walls to protect display.
    • Peak, hold and track modes standard.
    • Fast sampling rate helps maintain high accuracy during torque applications.
    • Easy to use by production line or quality control inspector.
    • Meets or exceeds ASME B107.28

Tech Specs

Back To Top
Item Height [in] 6.300
Item Length [in] 48.500
Item Weight [lbs] 33.110
Maximum Torque [Nm] 1400
Minimum Torque [Ft Lbs] 100
Minimum Torque [Nm] 140
Overall Length [in] 77
Torque Range [Ft Lbs] 100-1000
Torque Range [Nm] 140-1400
UPC Code 662679005818
Width [in] 4
Country of Origin United States
Style Electronic
Maximum Torque [Ft Lbs] 1000
Specification_ASME ASME B107.28
Item Width [in] 6.400
Finish Full Polish
Height [in] 5
Accuracy CW 1%
Drive Size [in] 1
Accuracy CCW 1%
Box Weight [lbs] 0.010
Brand Proto
Item Quantity 1
Harmonization Code 8466100175
Box Quantity 1
