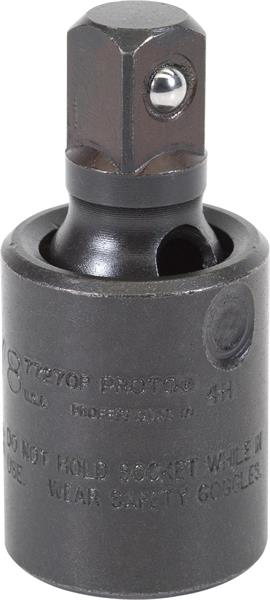

1/4 Inch Drive Impact Universal Joint - Proto®

  • Item Code: J66170P
  • Brand: Proto
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Tight tolerances for snug fit on fastener.
    • Used wherever powered drive tools are used to install or remove fasteners.
    • Designed to withstand the high torque and force associated with impact tools in repetitive application.
    • Features two through holes and a groove to accept a Proto® Retaining Ring or pin and O-ring to help secure the socket to the drive tool anvil.
    • Position at appropriate angle to turn fasteners where obstructions prevent a straight application.
    • Ball and spring design which allows for a 30° working angle.
    • Smooth 360° rotation.

Tech Specs

Back To Top
Box Weight [lbs] 0.390
Overall Length [in] 1-3/8
UPC Code 662679006693
Item Length [in] 1.400
Box Quantity 6
Drive End Outside Diameter [in] 5/8
Finish Black Oxide
Drive Size [in] 1/4
Item Height [in] 0.700
Brand Proto
Country of Origin United States
Item Weight [lbs] 0.070
Box Length [in] 4.700
Box Width [in] 2.400
Item Width [in] 0.700
Size [in] 1/4
Box Height [in] 1.300
Harmonization Code 8204200000
Item Quantity 1
Length Type Standard
