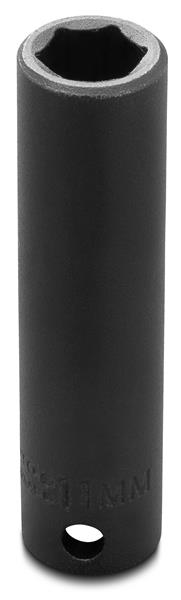

3/8 Inch Drive Deep Impact Socket 6 mm - 6 Point - Proto®

  • Item Code: J7006M
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
    • Size stamped on tool for easy identification.
    • Side locking hole.

Tech Specs

Back To Top
Box Height [in] 1.500
Nut Depth [in] 9/32
UPC Code 662679332341
Box Weight [lbs] 1.250
Item Quantity 1
Size [mm] 6
Box Quantity 6
Finish Black Oxide
Nut End Outside Diameter [in] 27/64
Bolt Clearance Depth [in] 2-1/4
Box Length [in] 6.000
Brand Proto
Nose Width [in] 27/64
Harmonization Code 8204200000
Item Weight [lbs] 0.190
Point Size 6
Item Height [in] 0.600
Item Width [in] 0.600
Length [in] 2-3/4
Length Type Deep
Country of Origin United States
Drive Size [in] 3/8
Overall Length [in] 2-3/4
Specification_ASME ASME B107.110-2012
Box Width [in] 2.500
Drive End Outside Diameter [in] 11/16
Item Length [in] 2.700
