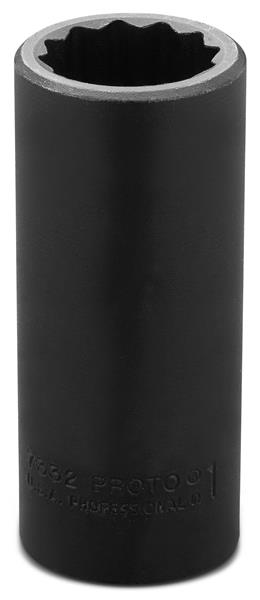

1/2 Inch Drive Deep Impact Socket 1 Inch - 12 Point - Proto®

  • Item Code: J7332
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
    • Socket size stamped on tool for easy identification.
    • Side locking hole.

Tech Specs

Back To Top
Box Weight [lbs] 5.940
UPC Code 662679340766
Drive Size [in] 1/2
Item Quantity 1
Item Weight [lbs] 0.990
Nut Depth [in] 1-13/32
Length Type Deep
Item Height [in] 1.500
Point Size 12
Specification_ASME ASME B107.110-2012
Box Width [in] 3.300
Finish Black Oxide
Harmonization Code 8204200000
Box Length [in] 11.800
Drive End Outside Diameter [in] 1-1/2
Overall Length [in] 3-1/2
Bolt Clearance Depth [in] 2-7/8
Nut End Outside Diameter [in] 1-1/2
Size [in] 1
Specification_AS AS954E S3.8.1
Item Length [in] 3.500
Box Height [in] 2.500
Box Quantity 6
Brand Proto
Country of Origin United States
Item Width [in] 1.500
Length [in] 3-1/2
