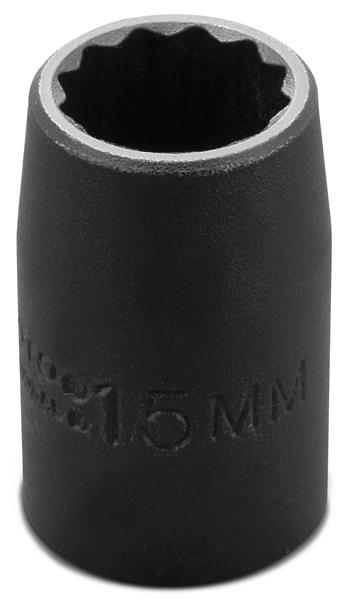

1/2 Inch Drive Thin Wall Impact Socket 15 mm - 12 Point - Proto®

  • Item Code: J7415MT
  • Brand: Proto
  • Unit Size: 1

Description

Features

Back To Top
    • Proto® 12 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
    • The TorquePlus„¢ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
    • The TorquePlus„¢ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
    • The TorquePlus„¢ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
    • Socket size stamped on tool for easy identification.
    • Side locking hole.

Tech Specs

Back To Top
UPC Code 662679342722
Finish Black Oxide
Harmonization Code 8204200000
Length Type Standard
Overall Length [in] 1-1/2
Drive Size [in] 1/2
Item Height [in] 0.800
Item Width [in] 0.800
Length [in] 1-1/2
Point Size 12
Specification_ASME ASME B107.110-2012
Box Height [in] 1.190
Box Width [in] 2.560
Item Weight [lbs] 0.160
Size [mm] 15
Box Length [in] 5.500
Item Length [in] 1.400
Item Quantity 1
Bolt Clearance Depth [in] 21/32
Box Quantity 6
Specification_AS AS954E S3.8.1
Country of Origin United States
Drive End Outside Diameter [in] 15/16
Nut Depth [in] 7/16
Box Weight [lbs] 0.950
Nut End Outside Diameter [in] 27/32
Brand Proto
